Workshop Age testing of 40 sqm P1.9 Full Color Indoor LED Display for Indonesia client

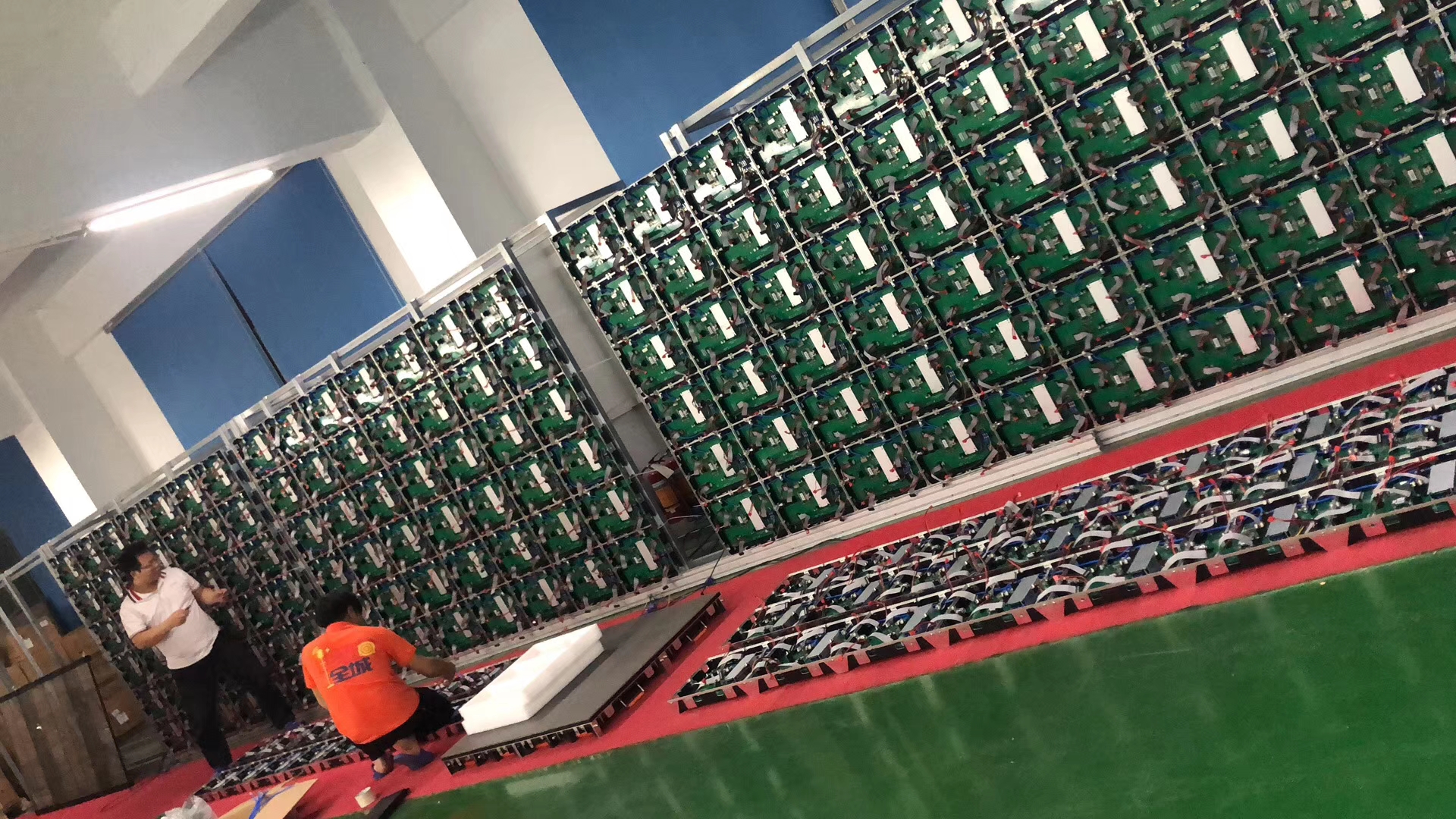

40 SQM P1.9 indoor HD led video wall is under age testing in our workshop for Indonesia client.

P1.9 is very vivid in color and high in definition.
P1.90 Ultra HD led sign board for indoor, full color indoor led display
Strong Aluminum material cabinet, keep strong configuration and light weight
Small panel size of 400× 300mm or 800× 600mm, like a TV screen used simply
High definition, high refresh rate, high gray scale, keep the good performance than others
Seamless splicing, High brightness

4K P1.25 small pitch led display indoor video advertising for XTW TV Show
4K P1.25 small pitch led display indoor video advertising for XTW TV Show

4K P1.25 small pitch led display indoor video advertising for XTW TV Show

4K P1.25 small pitch led display indoor video advertising for XTW TV Show

4K P1.25 small pitch led display indoor video advertising for XTW TV Show


Module Parameter

Item

Specification Parameter

Pixel Pitch、Resolution rate、size

1.9mm、105*158dots、200*300*21mm

Pixel color、 Pixel LED

1R1G1B、 SMD1010

Working voltage

DC5V

Driving IC、Driving way

MBI5153、1/21

HUB

--

Cabinet Parameter

Material、Cabinet Weight(kg/Cabinet)

Casting aluminum、4.6kg/Cabinet

Resolution rate、size、Module quantity

210*158、400*300*77mm、1X2

Density

276676 Dots/㎡

White balance 、Color temperature

800CD/㎡、6500K-11000K

view angel、Non-Flatness、Module interval

H:140°;V:140°、<0.3mm、<0.3mm

Maximal power/㎡、Average power/㎡

900W/㎡、300W/㎡

Frame frequency、Refresh frequency、Gray grade

60Hz、1920Hz、14bit

Control system、System supports

Novastar / Linsn /、Windows XP,WIN 7,

Working temperature、Protection grade

-10℃ - +40℃、Front/Back:IP30/IP30
