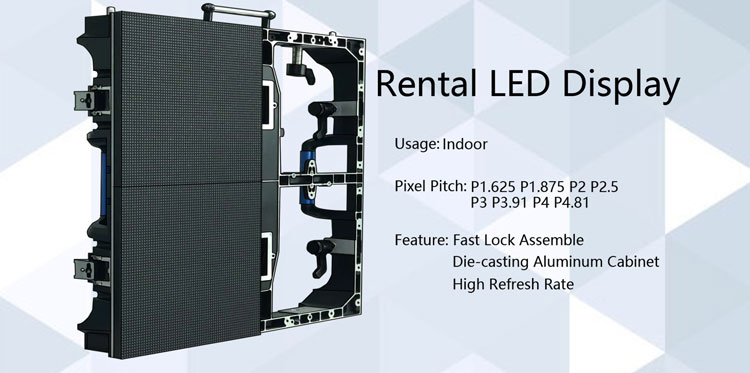

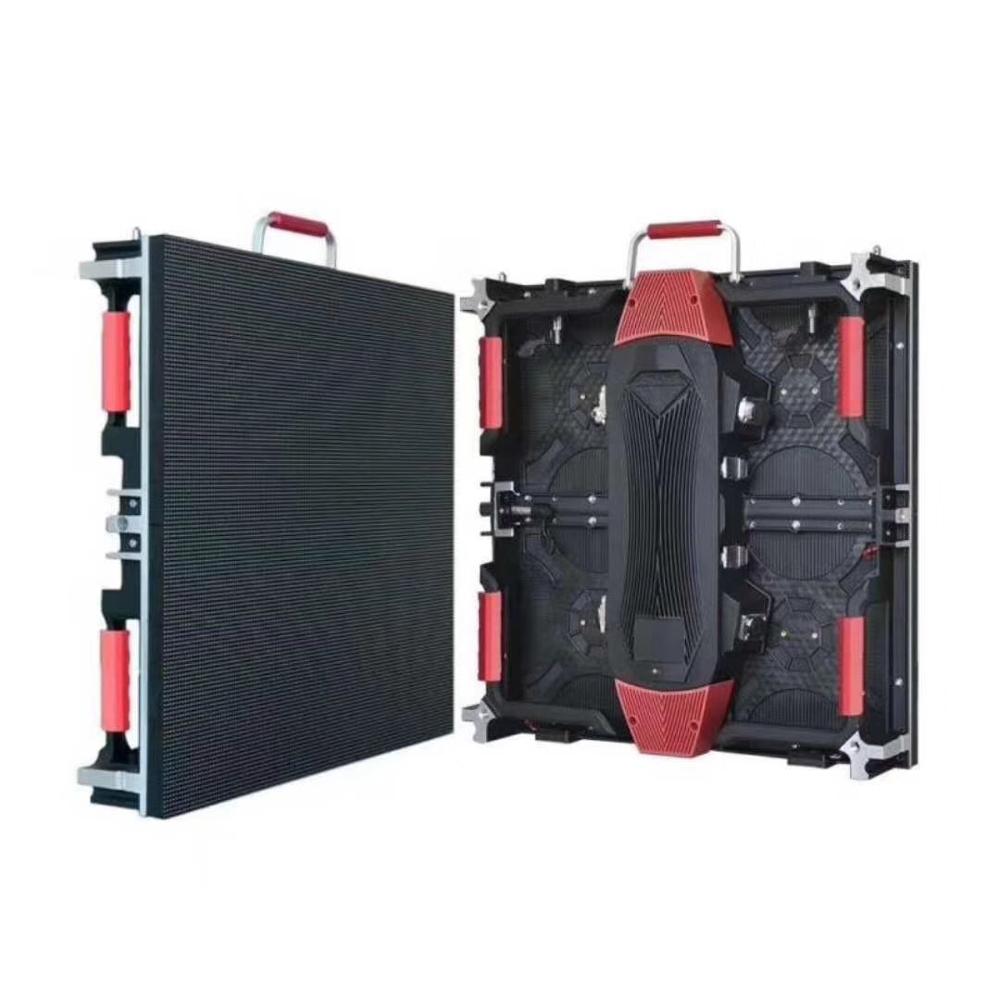

Indoor SMD P3.91 Led Screen 500*500mm Stage Rental led Display Wall

Indoor SMD P3.91 Led Screen 500*500mm Stage Rental led Display Wall

Indoor SMD P3.91 Led Screen 500*500mm Stage Rental led Display Wall
Indoor SMD P3.91 Led Screen 500*500mm Stage Rental led Display Wall
Indoor SMD P3.91 Led Screen 500*500mm Stage Rental led Display Wall

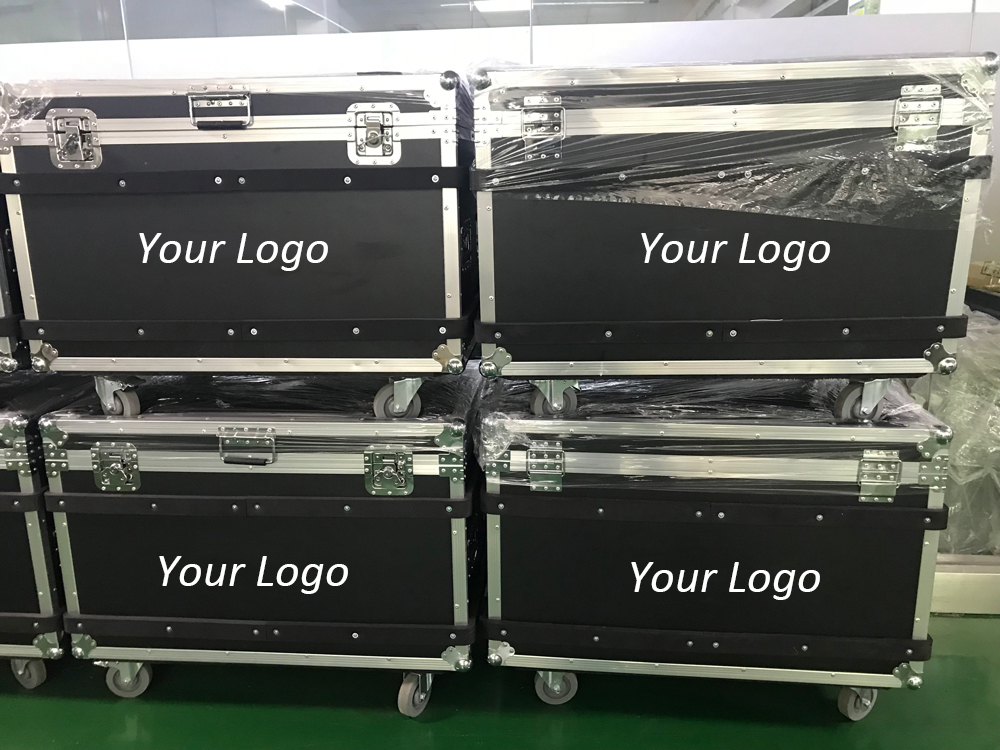

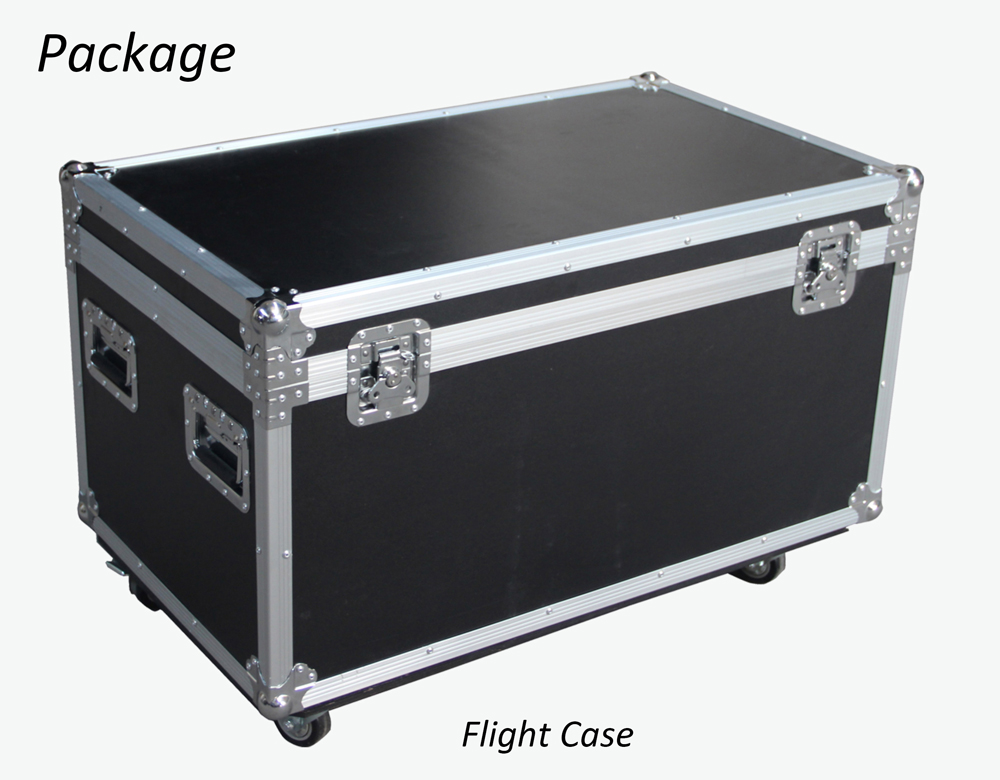

Packing&Shipping
Indoor SMD P3.91 Led Screen 500*500mm Stage Rental led Display Wall
Indoor SMD P3.91 Led Screen 500*500mm Stage Rental led Display Wall
1. You can put your logo on the front of the flight case
2. We will customize each flight case according to the size of the cabinet. The internal soft design can protect the display.
3. With wheels, you can move at will
4. Put the moisture-proof bag in every air box, sea, air transport without any problem
5. Packed in anti-static bags, bubble bags, foam box and carton to ensure safety in transportation, or customized single box
Pixel Pitch
P1.25mm
P2.5mm
P3.91mm
P4.81mm
Pixel Configuration
SMD 1010
SMD 2121
SMD 2121
SMD 2121
Pixel Density
640,000 dots/sqm
147,456 dots/sqm
65,536 dots/sqm
43,402dots/sqm
Cabinet Size
400 x 300 mm
480 x 480 mm
500 x 500 mm
500 x 500 mm
Max. Power Consumption
1,900 W/sqm
620 W/sqm
620 W/sqm
500 W/sqm
Avg. Power Consumption
800 W/sqm
200 W/sqm
180 W/sqm
150 W/sqm
Dirving Method
1/30 Scan
1/32 Scan
1/16 Scan
1/16 Scan
Brightness
600 - 800 nits
900 - 1,000 nits
1,000 - 1,100 nits
1,000 - 1,100 nits
Best Viewing Distance
> 1 m
> 2.5 m
> 4 m
> 5 m
Refresh Rate
1,920 Hz / 3,840 Hz
Viewing Angle
40°(H) / 140°(V)
Grey Scale / Colors
65,536 level(color range 281 trillion)
Processing Depth
16 bit
Brightness Control
256 levels automatically
MTBF
>10,000 hours
Lifetime
100,000 hours
IP Grade
IP 32
Operating Temperature & Operating Humidity
Temperature -25℃~45℃  &
Humidity 10%~95%
Operating System
Windows
Running Files
Picture, Video, Text, Animation,  etc
