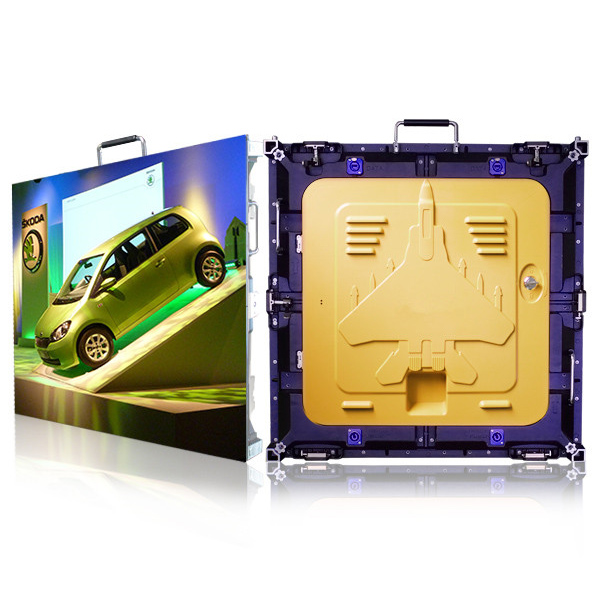

Outdoor Rental Die-casting SMD LED Screen Display

&. Pixel pitch: 6.66mm, 8mm and 10mm; Cabinet size is 640 * 640 mm

&. Aluminum die-casting cabinet, light weight, slim body, fit for outdoor rental.

&. With Protection grade IP65 in the front and IP54 in the rear.

&. SMD3535 or DIP 346 LEDs is used for this model with high-quality LEDs

&. Graceful and concise appearance, <0.1mm discrepancy

&. Fast locks at the four sides of the cabinet, easy assembly; and be piled up and be hoisted.

&. Backside maintenance. Exterior exposed module screws, easy dismantling.

&. Waterproof connectors and jackets, safe and steady.

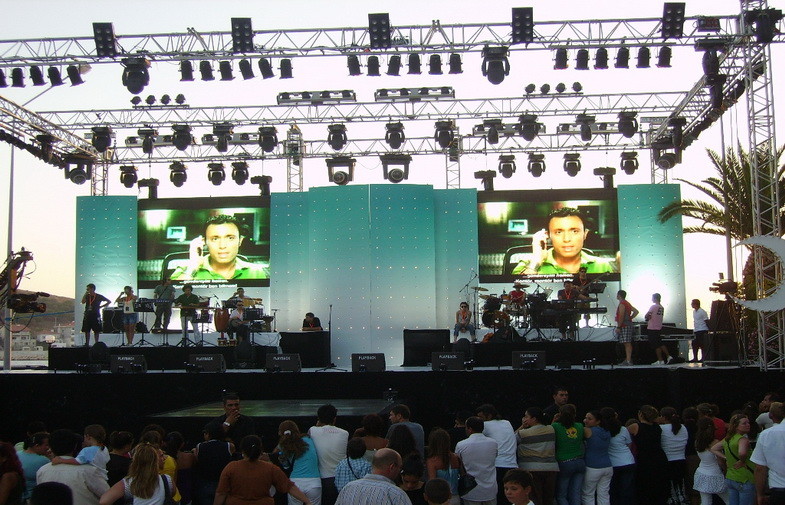

R0640S Outdoor Rental Display

Outdoor SMD Die-casting aluminum LED Display Series.
Pixel Pitch (mm)	6.66mm	8mm	10mm
Pixel density(pix/m2)	22545	15625	10000
LED Type	3535	3535	3535
Viewing Angle	X、Y140°	X、Y140°	X、Y140°
Brightness(nits)	≥5000	≥5000	≥5000
Drive Method	1/6.	1/5.	1/2.
Refresh Rate(Hz)	1920	1920	1920

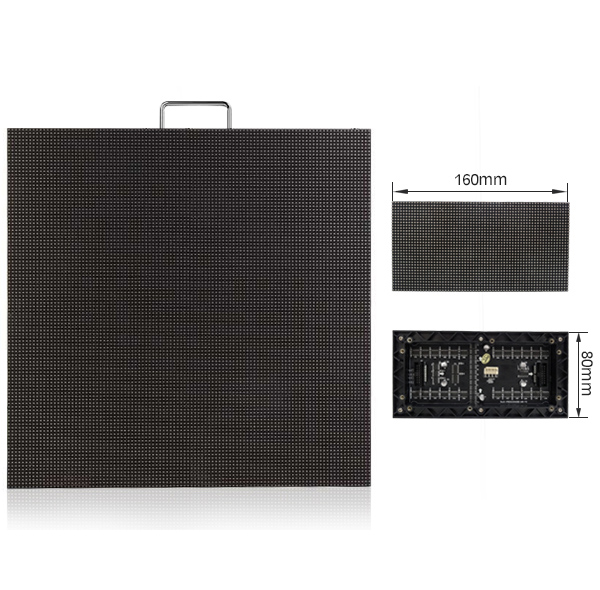

Module Size (mm)	320×160×16
Cabinet Size(mm)	640×640×80
Cabinet Material	aluminum
Cabinet weight(kg)	12	17	17
Voltage	200-240V
Average power(W/m2)	230	230	230
Max power (W/m2)	700	700	700
IP Grade	IP65/IP54
Operating temperature	temperature：-20℃～ 50℃ humidity：10～90%RH
Storage temperature	temperature：-40℃～ 60℃ humidity：10～90%RH
