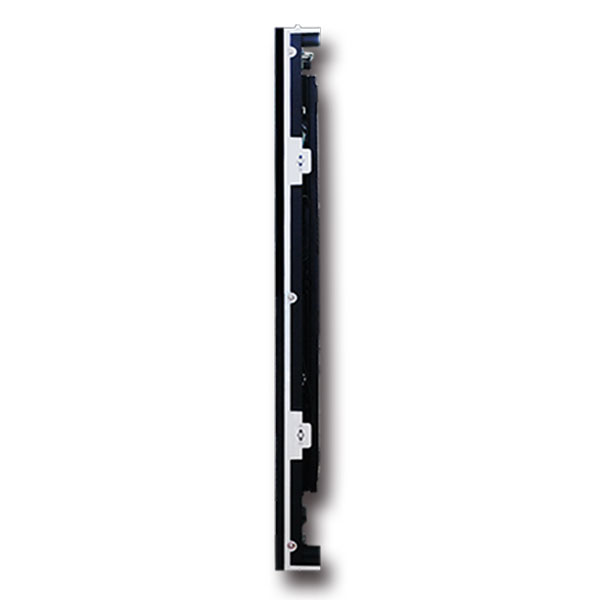

1.ultra-thin: single box 5-7.5KG, 70-100mm thick;
2.ultra-high refresh rate: can ensure that high-definition cameras and cameras can capture high-definition delicate display when shooting;
3.low brightness and high gray performance: in the case of low brightness, the display gray level is uniform, the display consistency is good;
4.high contrast: mask design, black body SMD, the surface is not reflective, large viewing angle, display effect is good;
Item |
specs |
Pixel Pitch |
P2.976mm |
Resolution(/module) |
84(W)*84dots(H) |
Module size |
250mm*250mm*17mm |
Pixel configuration |
1R1G1B |
LED Lamp |
1515 RGB black led lamp |
Display resolution |
112896pixels/m2 |
Scan mode |
1/28 |
Viewing angle |
Horizental 140°,Vertical 140° |
Cabinet Dimension |
500x500x88/500x1000x88 |
Refresh rate |
≥3840HZ |
Driver IC |
MBI5124+2012 |
Gray scale |
RGB 256 level, 16.7M color |
brightness |
≥5000cd/m2 |
Color temperature |
6000~9000 customable |
Module viewing angle |
160°(W) 120°(H) |
Best viewing distance |
3M~20M |
