1. High refresh rate 1920Hz ,best scan method for energy saving, perfect 14bits grey level, exclusive technology on driving IC to remove ghost shadow and more pattern, good effect on photographing.

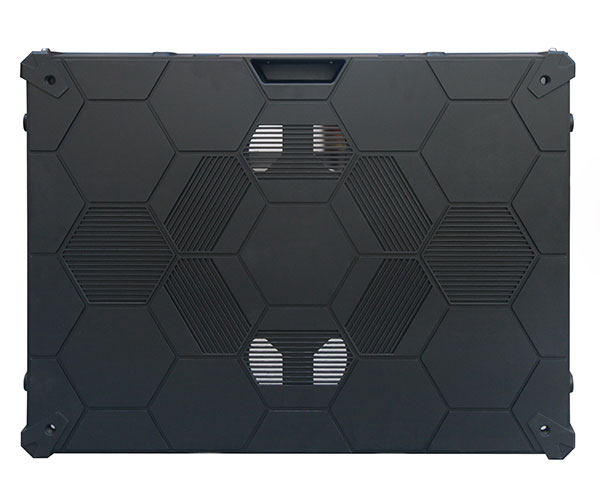

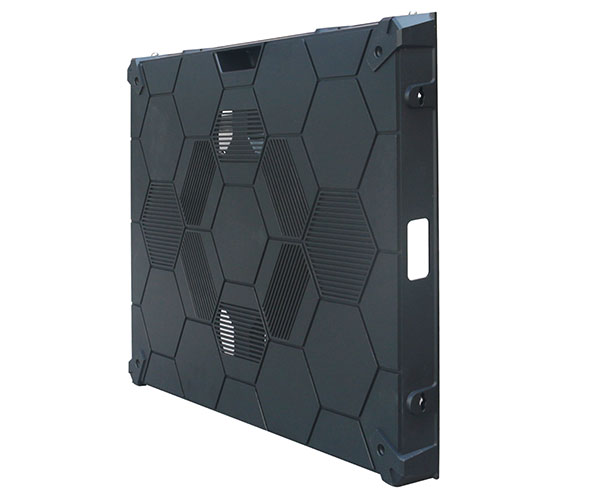

2. Thin: It is die-casting aluminum cabinet, thus it is featured by high strength, toughness, precision and it is hard to be deformed. The edge is just 33mm comparing to the 160mm of common cabinet.
3. Fast: There is fast locking device in four corners. It takes only 10 seconds to assemble one cabinet . It is fast and precise assembling.
4. Easy: The die-casting aluminum cabinet is modular designed, each cabinet of the screen can be easily dismantled and assembled(replaced). Best choice for Rental LED display,Rental LED screen,outdoor rental led display,indoor Rental LED display.
5. Low: Excellent heat dissipation design, plus fans for heat dissipation. Low noise, light weight, low cost for transportation and assembling without tools with low cost for assembling.
Indoor P2 LED Display | |
Model number | P2 |
Pixel pitch | 2mm |
Module resolution | 64*64 |
Module size | 128mm*128mm |
Cabinet resolution | 256*256dots |
Cabinet size | 512mm*512mm |
Pixel density | 250000dots |
LED Encapsulation | SMD1515 |
Module weight | 0.3kg |
Average consumption | 500w/sqm |
Max power consumption | 1000w/sqm |
Best view distance | 2m~200m |
Best view angle | 140º |
Brightness | ≥1400cd/sqm |
Scanning | 1/32scan |
Refresh rate | ≥2000Hz |
Frame frequency | ≥360Hz |
Grey scale | 16384 |
Working voltage | 220VAC/50Hz±10% |
Life span | 100000hours |
Working temperature | -20℃ to +60℃ |
Certification | CCC/CE/RoHS |
