P5 Indoor Fixed LED Display Screen

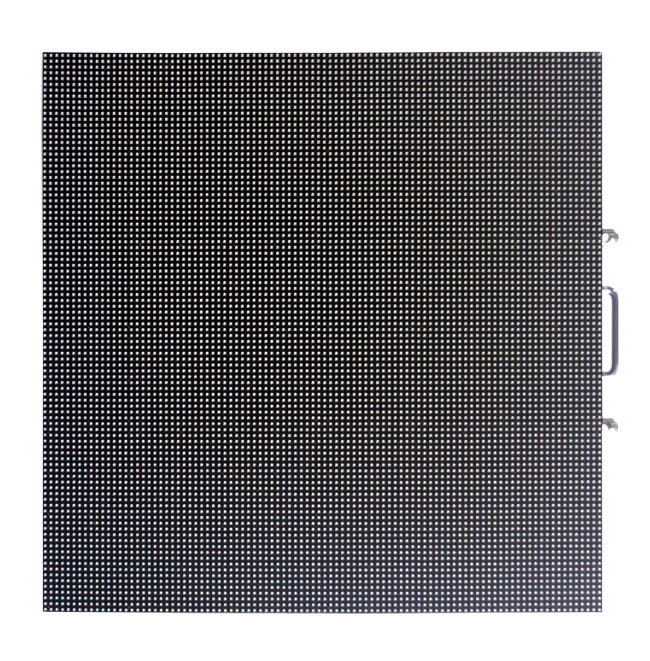

&. Pixel pixel: 5mm; Cabinet Size: 640mm*640mm. Indoor fixed LED display

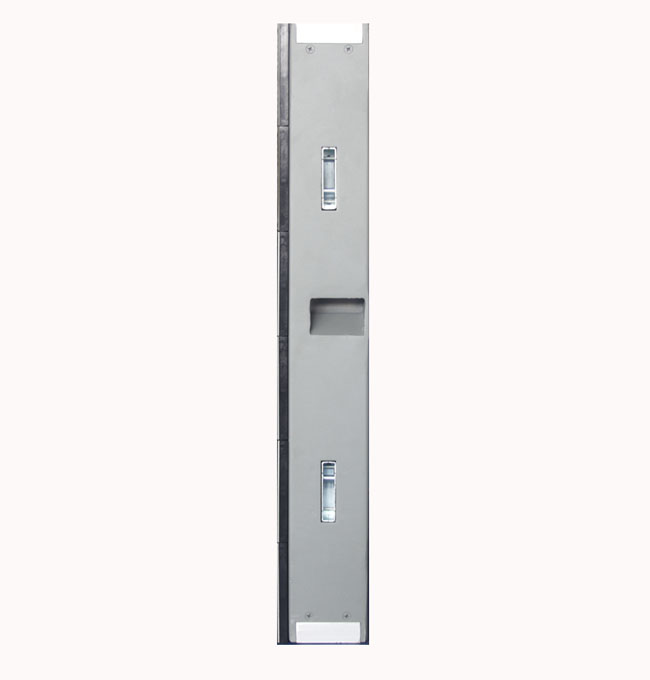

&. The design has the features of "light" and "thin". Convenient installation, withstand wind and dustproof. It can be fixted installation or for rental.

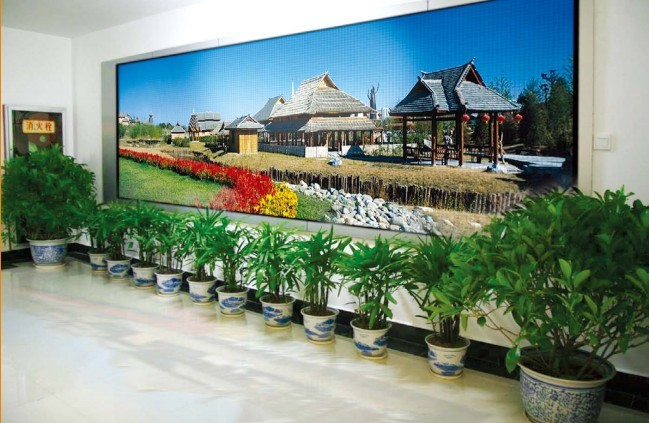

&. This product can be applied to many fields such as stage, bar, entertainment TV and so on.

&. The brightness can be adjusted from 500 nits to 2000 nits without damaging the gray level, matching with calibration technology, it has the great expressive color.

&. The product is convenient to install and with avian connectors.

&. High refresh frequency can meet the requirement of the shooting on the stage, presents the perfect effect.

Item	Indoor P5 Fixed LED display
Pixel Pitch（mm）	5mm
Pixel density（pix/m2）	40000
LED Type	3528
Viewing Angle	H:140°,V:140°
Color Depth（nits）	1500
Drive Method	1/16.
Color Depth	16384
Refresh Rate（Hz）	1600
Module Size（mm）	160X160x13
Cabinet Size（mm）	640X640X93
Cabinet Material	Iron
Cabinet weight（kg）	23
Voltage	110/220V
Average.power（W/m2）	160
Max.power（W/m2）	480
IP Grade	IP31
Operating temperature	temperature：-20℃～ 50℃ humidity：10～90%RH
Storage temperature	temperature：-40℃～ 60℃ humidity：10～90%RH
