Pixel Pitch | 3mm | |||
LED Configuration | 1R1G1B SMD2020 | |||
Pixel Density | 111111dot/m2 | |||
Module size | 192x96mm | |||
Module Resolution | 64x32dot | |||

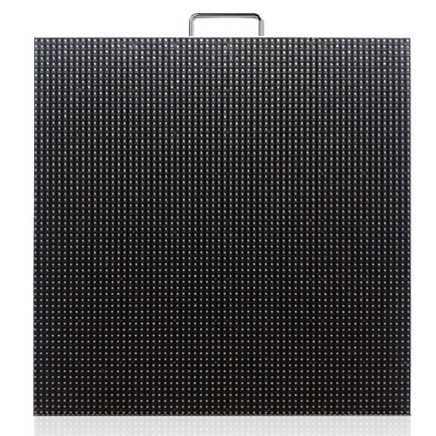

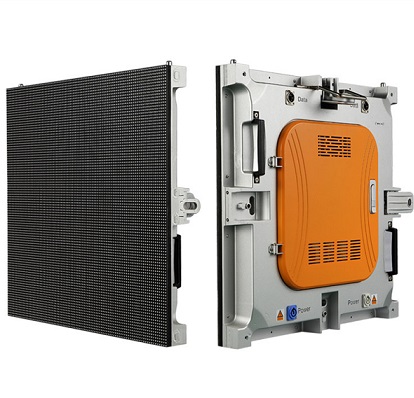

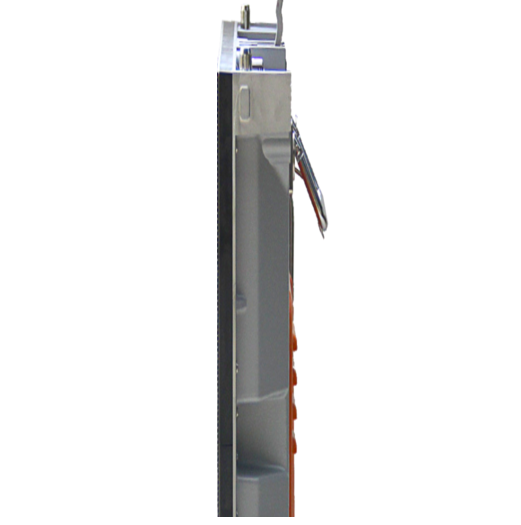

Cabinet Size | 576x576x95mm | |||
Cabinet Resolution | 192x192dot | |||
Cabinet Weight | 7.5kg | |||
Scanning Mode | 16S | |||
Brightness Intensity | 15000-2000CD/m² | |||
Viewing Angle | 140° | |||
View Distance | >6m | |||
Display Scale | 16.7M | |||
Max Power Consumption | 1200 W/m² | |||
Ave Power Consumption | 250 W/m² | |||
Refresh Frequency | ≥1920HZ | |||
Environmental | INDOOR | |||
Brightness Adjustment | 0 - 100 levels adjustable | |||
Operation Power | AC100/240 50/60HZ。 | |||
Operating Temperature | - 20℃~+50℃ | |||
Operating Life | 100,000hours. |
